case study

French drain installation

Renovation cost

Cost: $26,500

Renovation duration

Duration: 1 week

The project consisted of installing a french drain on the 3 facades of the building constructed in the 1930s, in order to protect the foundations against humidity and allow better stormwater drainage system.

Project manager Yahya Diallo

project manager

Yahya Diallo

General contractor Joseph Vani

general contractor

Joseph Vani

Tell us about your project

The general contractor in charge of the project started with the excavation work up to the footings, all along with the building. Then, the foundation walls were cleaned and dried before repairing the concrete cracks. Then, the contractor proceeded with the waterproofing of the foundation walls with the installation of the Delta MS waterproof membrane. The french drain was subsequently installed along with the footings: it is perforated conduct, under a stone backfill, to allow the collection of water. It is connected to a new custom-built catch basin in the basement of the building.

The contractor also installed access and maintenance chimneys for the drain from the surface. The work was finished with the soil backfilling and the installation of new window wells.

Costs breakdown

French drain installation & backyard renovation

ITEMS
PRICE

Mobilization

$4,000

Waterproofing and french drain

$15,800

Driveway excavation and backfill

$3,250

GST 5%

$1,153

QST 9.975%

$2,299

TOTAL (CAD)
$26,502

Payment schedule

French drain installation

PAYMENTS STEPS
PRICE

End of Work (100%)

$26,502

TOTAL (CAD)
$26,502

Before French drain renovation

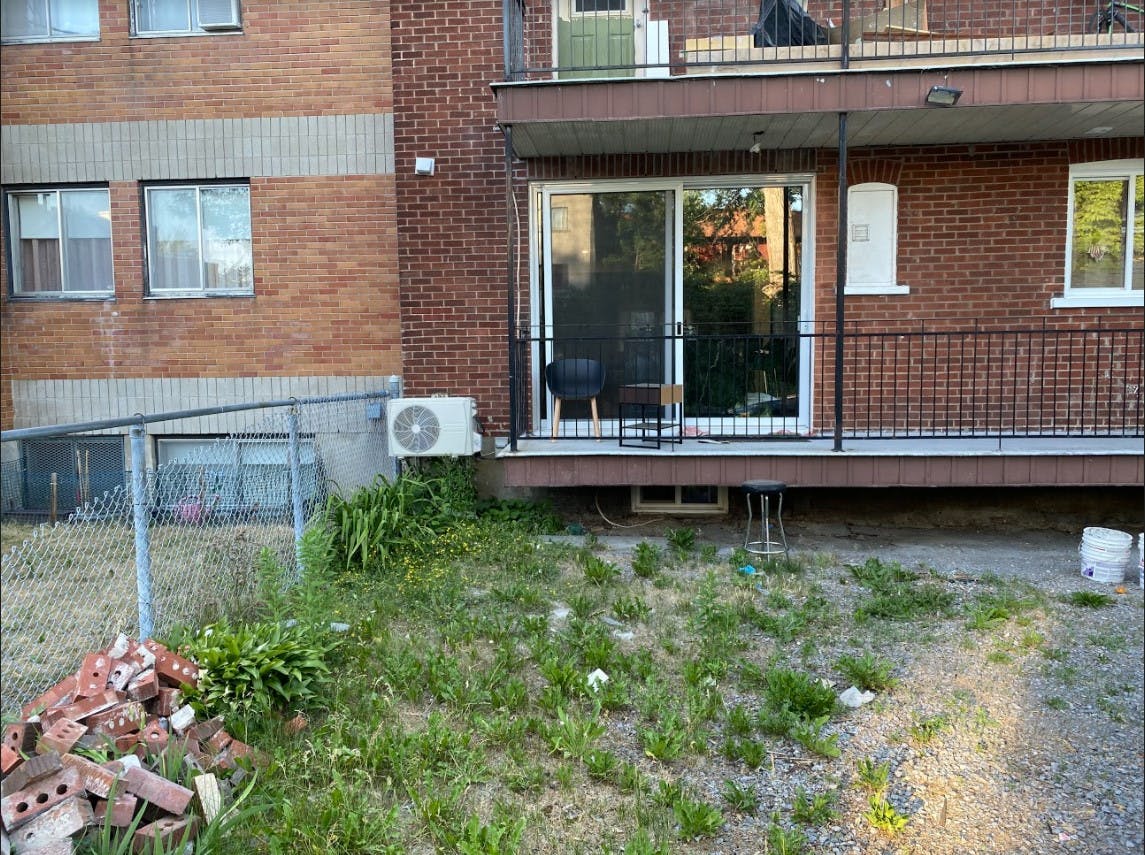

French drain, before renovation

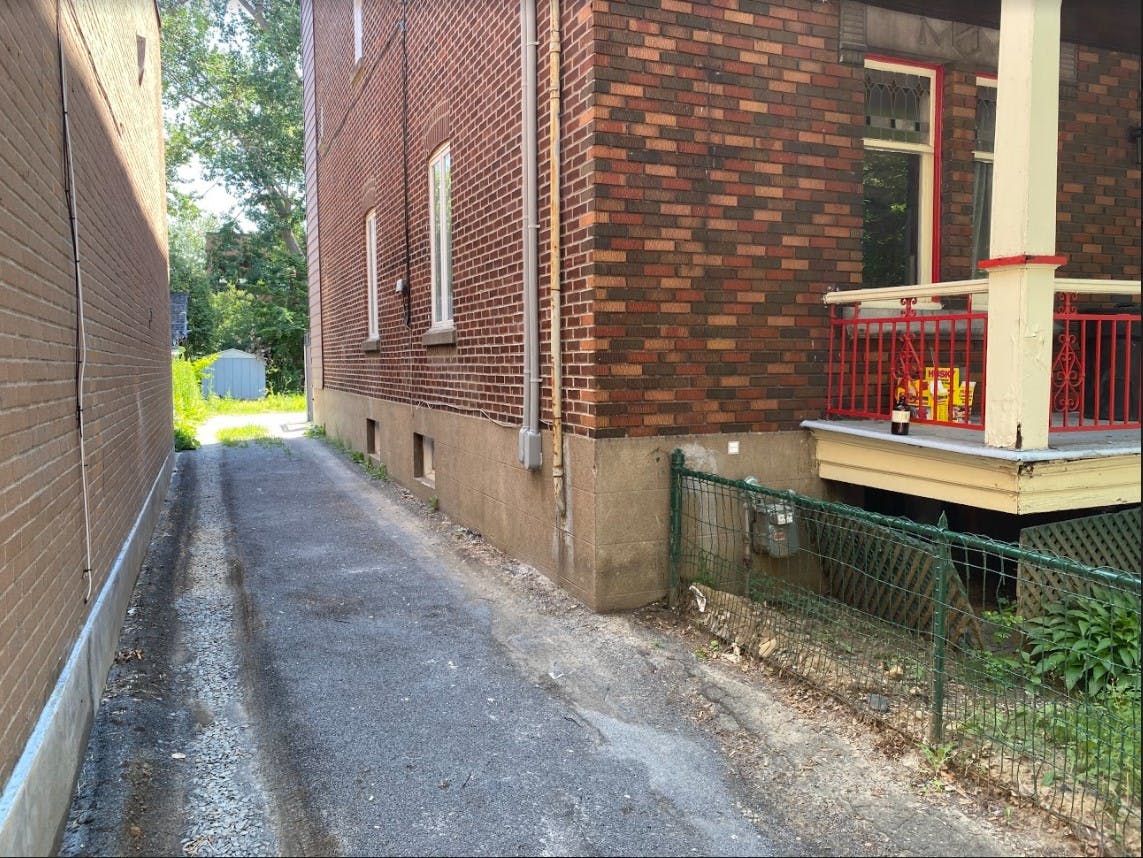

Driveway, before renovation

During French drain renovation

French drain, during renovation

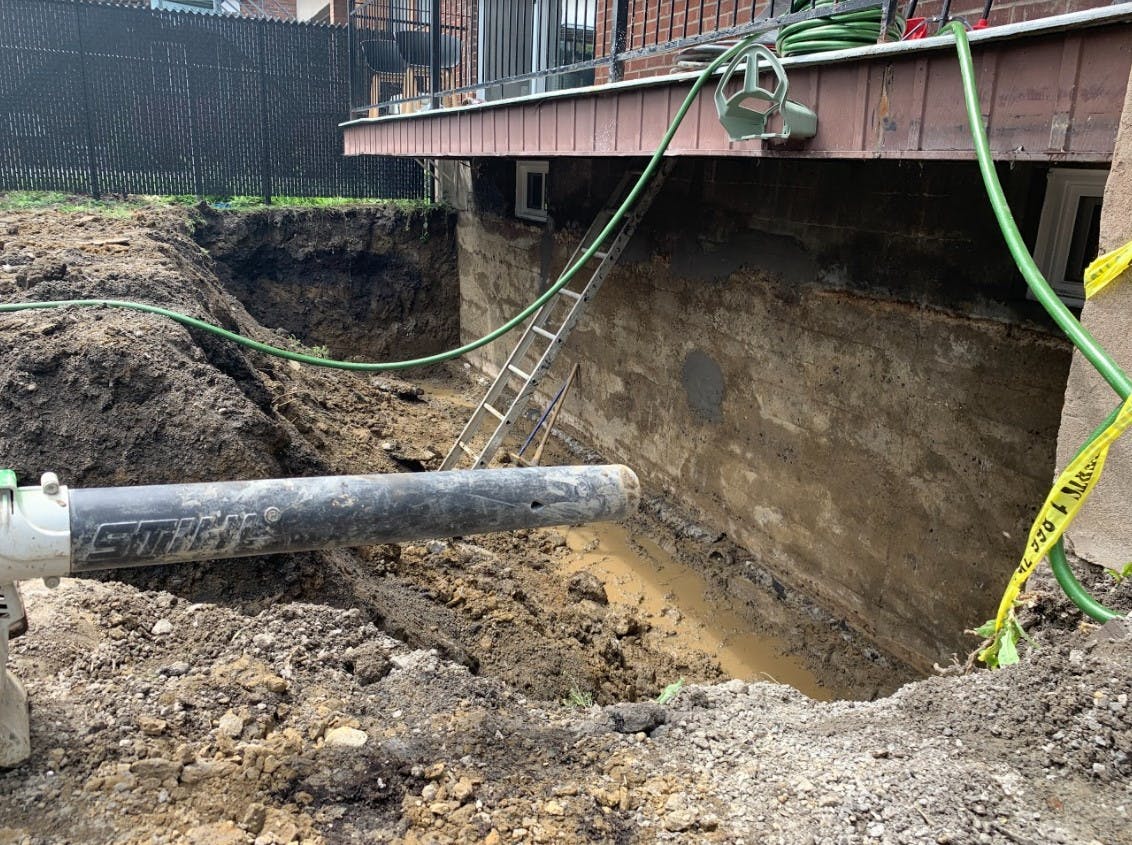

Excavation of french drain, during renovation
French drain, during renovation

After French drain renovation

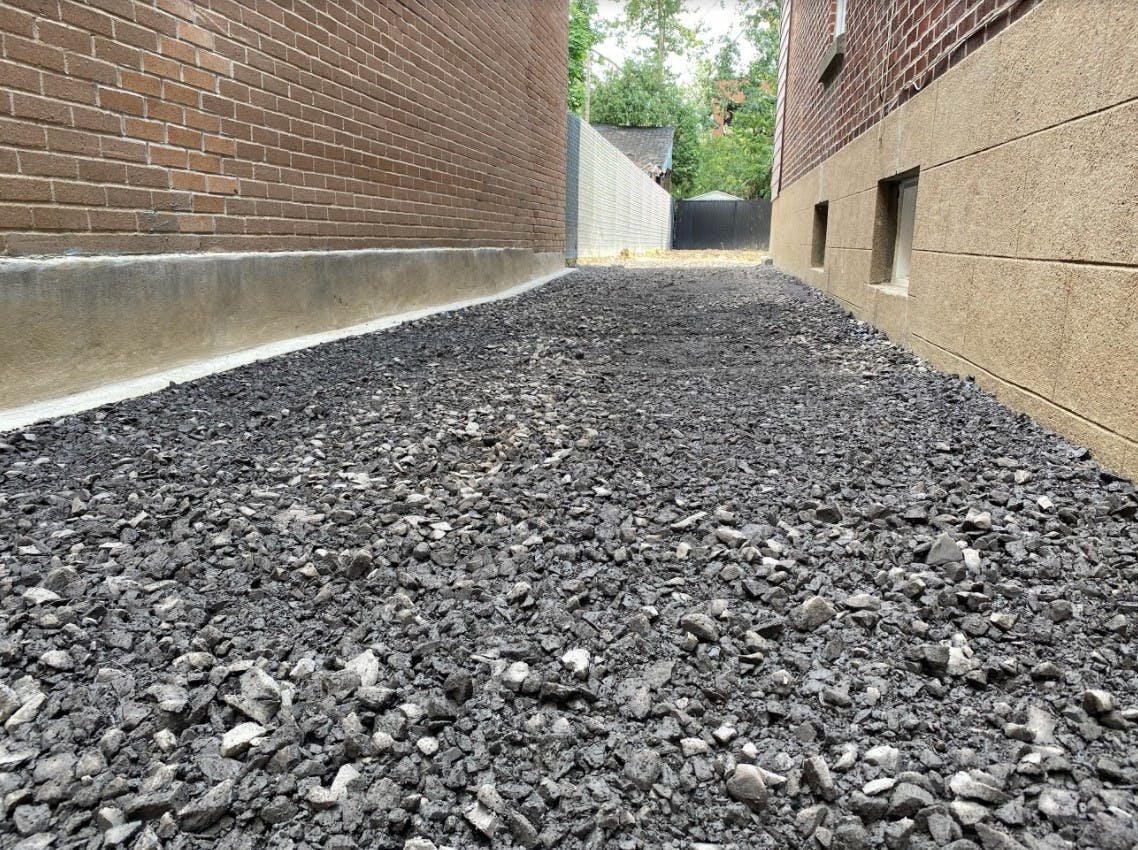

Renovated french drain
Renovated driveway with backfill

Warranty

All renovation projects have a 1-year warranty by default from the contractors who performed the renovation.
